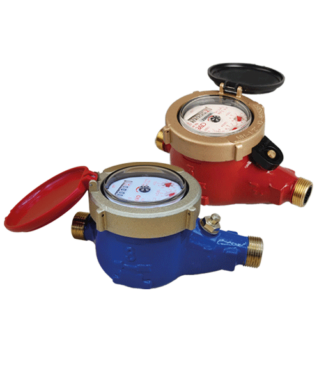

Tavor Multi-Jet High Performance Water Meter
The TAVOR multi jet water meter is now available with enhanced hydraulic performance and reinforced body ready to be integrated into your water system security.
Applications
Utilities
Available Sizes
DN15-DN20 (1/2″-3/4″)
Communication
Supported Protocols: Dialog 3G™
Features
- Sealed super dry magnetic register
- 6 digits counter + 3 pointers for high accuracy measurement readout
- Central “star” used for leak detection and electronic testing
- Lightweight, rotatable register for convenient positioning of dial
- Copper-Glass sealed register
- Security ring against anti vandalism
- Long life due to high technology components in measurment chamber
Standards
MID 2014/32/EU (based on OIML R49:2013, EN 14154 and ISO 4064:2014)
Related Leaflets
Installation Guide
Technical Specification
- Maximum Working Pressure – 16 bar
- Liquid Temperature – 0.1 up to 50 º C
- Meter body material -Highly reinforced composite material
- Body – BSP, NPSM
- Inlet / Outlet Threads – 3/4” (For pipe line 1/2”)
- Register – IP68
